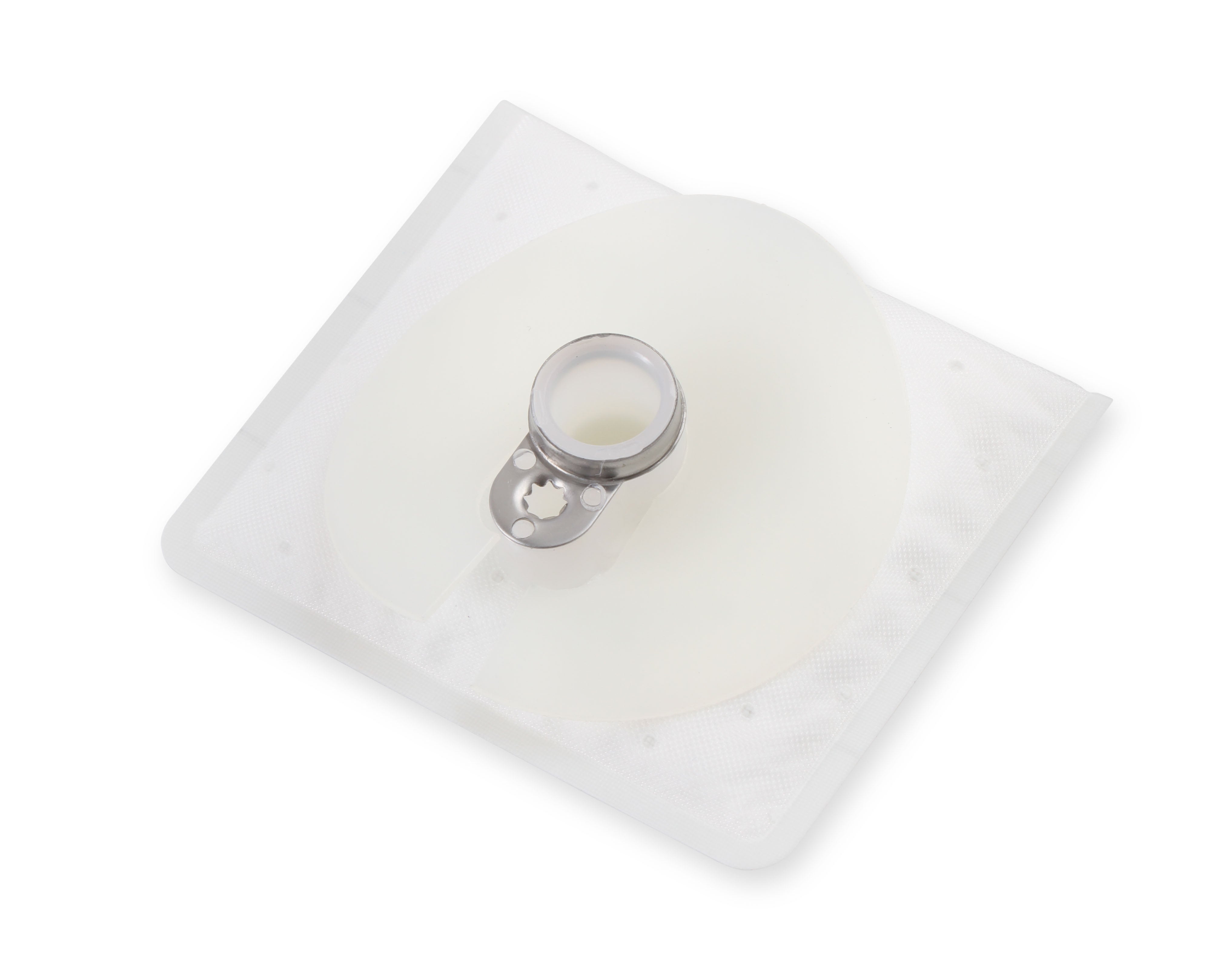

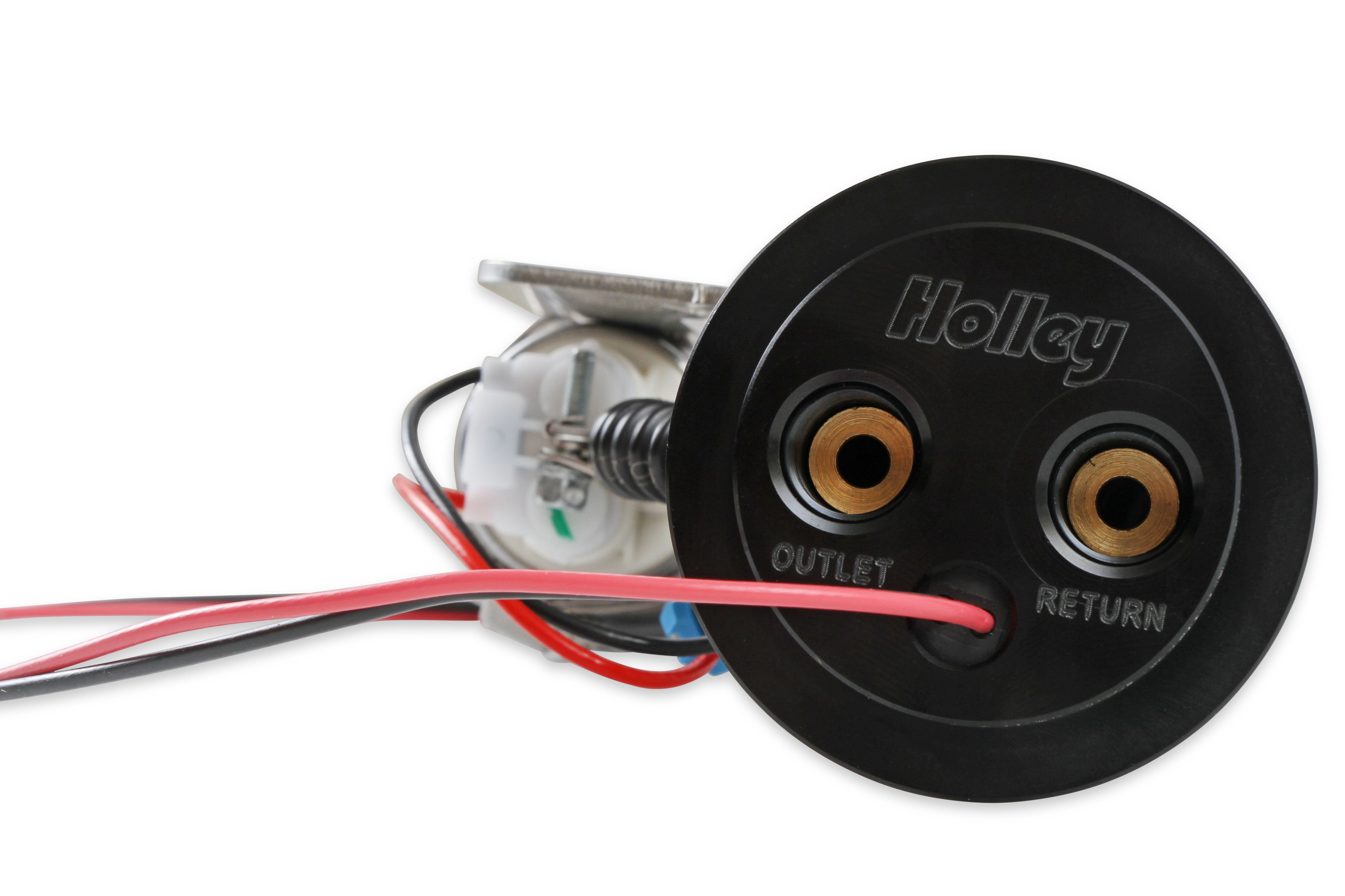

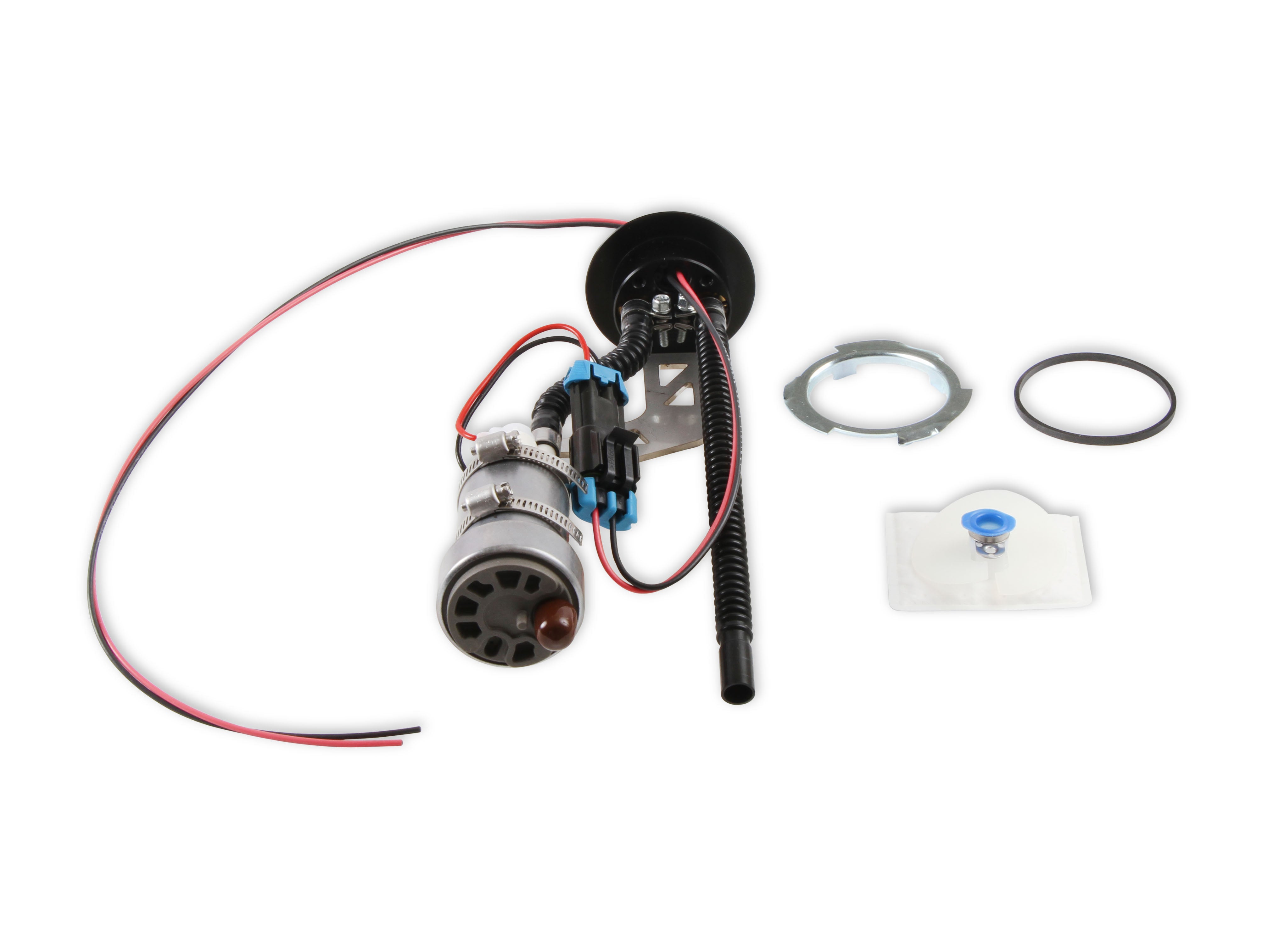

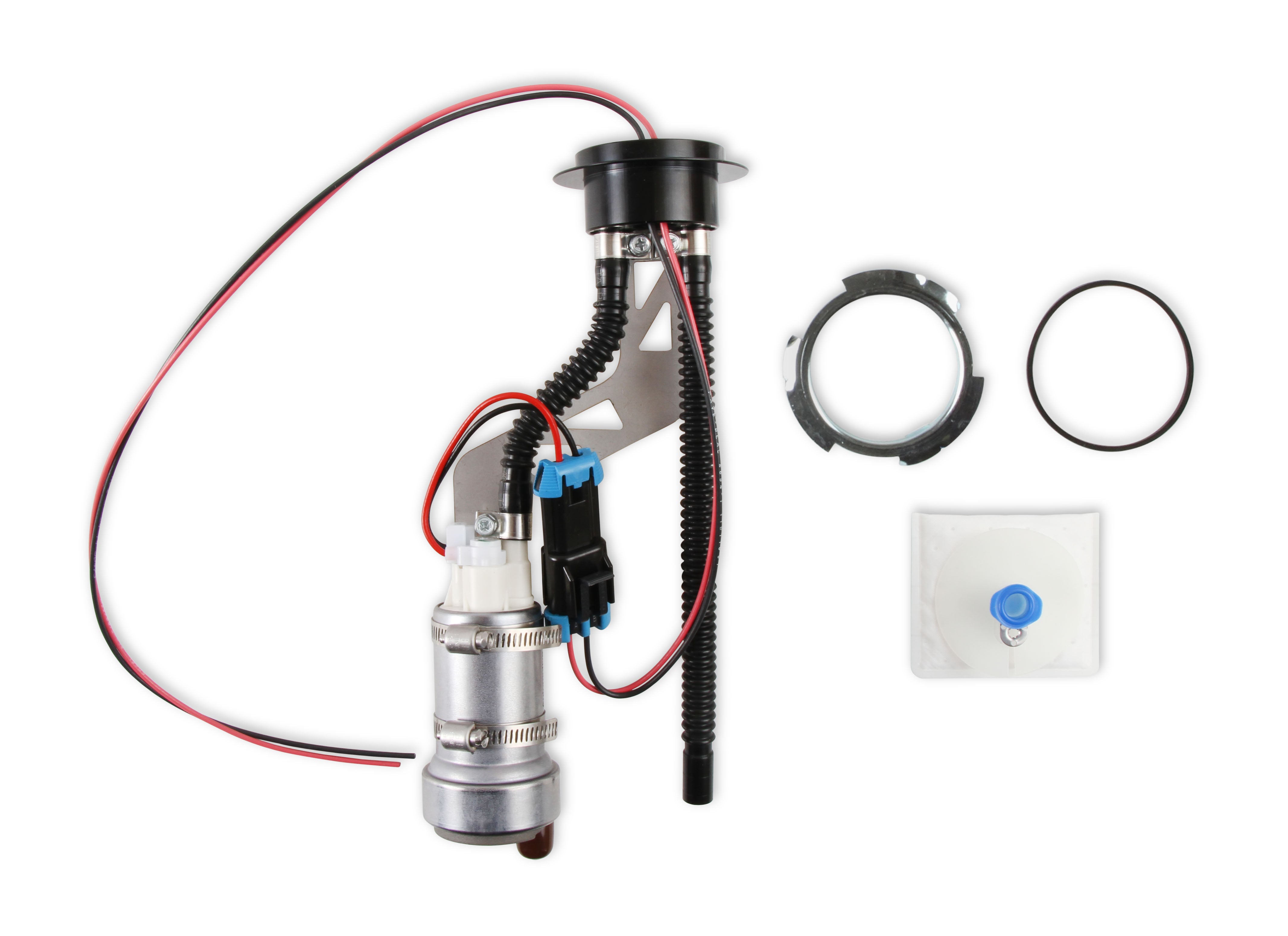

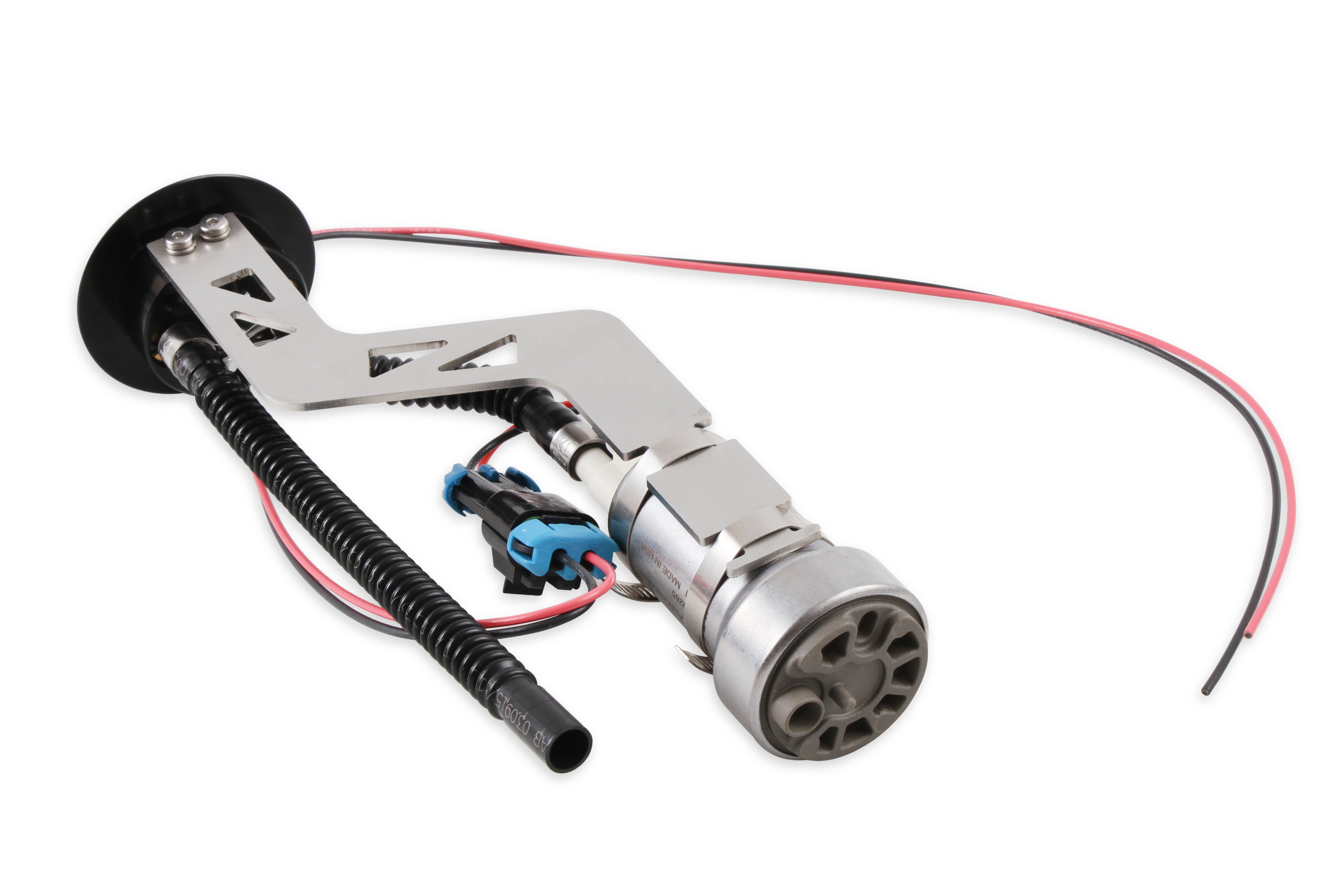

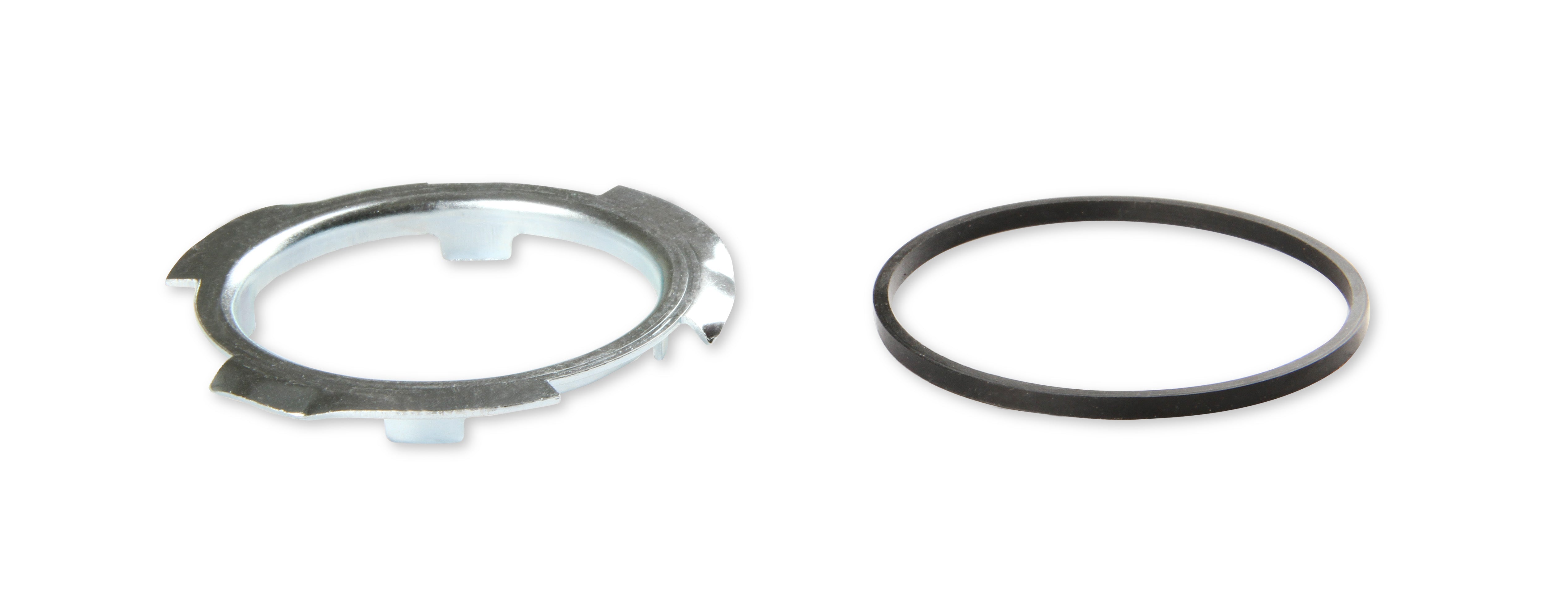

This direct fit fuel pump module will drop directly into any 1983-1997 Ford Mustang EFI fuel tank, designed with a 525 LPH (liters per hour) Holley fuel pump that will support up to 1200 EFI or 1450 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 17 AMP Draw). The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the hanger assembly, fuel pump inlet filter, flange o-ring, and tank lock ring and gasket to complete your installation into your stock fuel tank.
